POLYZOL PLUS TEX (FT-TX2)

Polyzol Plus Tex (FT-TX2) is a one-pot, ready-to-use screen printing emulsion designed for excellent image definition and resolution. This product is ideal for textile screen printing with both water-based and plastisol inks. It is easy to coat, offers fast exposure times, and is ready to use. Additionally, it is suitable for both high and low mesh numbers.

  • SBQ Emulsion

  • Fast exposing

  • Suitable for halftone or photographic designs

Properties

Type : One pot / Pink colour
Solid content (unsensitized) % : 40 %
Recommended inks : Water based ink, Textile ink and Plastisol ink.

Main Characteristics

Special safelight is not essential, but yellow or weak illumination is desirable.

Caution

  • New screen should be abraded with Screenprep (SPR034) before use for optimum stencil durability.

  • Degreasing the screen, use Degreaser Plus (P-6419)

Preparing the Screen

Manual
Set the screen on edge slightly inclined away from the operator and then follow this procedure:

  • Apply one or two coats of this emulsion, wet on wet, to the print side of screen.

  • Apply one or two coats of this emulsion, wet on wet, to the squeegee side of screen.

  • If a higher build of emulsion is required extra coats should be applied, wet on wet to the print side.

Coating

Automatic

  • When using an automatic coating machine, a simultaneous single coat on each side of the screen is recommended.

  • If higher builds are required, extra coats should be applied to the print side of the screen

Remark

  • Keep the screen and all screen handing areas dry until exposure is complete.

Put coated screen in hot air oven with squeegee side up. Do not exceed 40 ํC.

Drying

Exposure

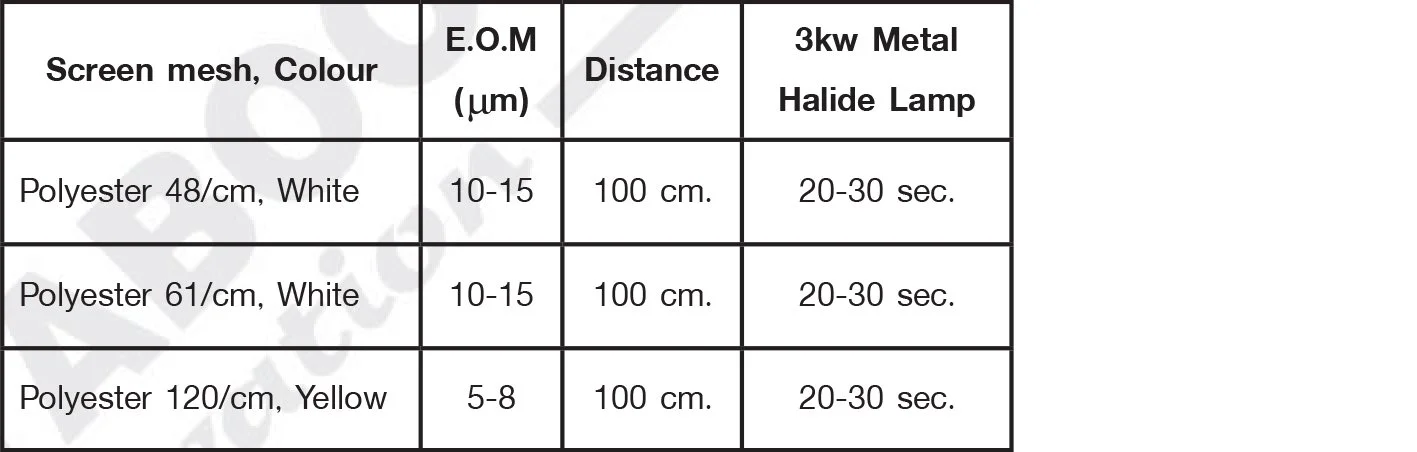

Table of Exposure Guide

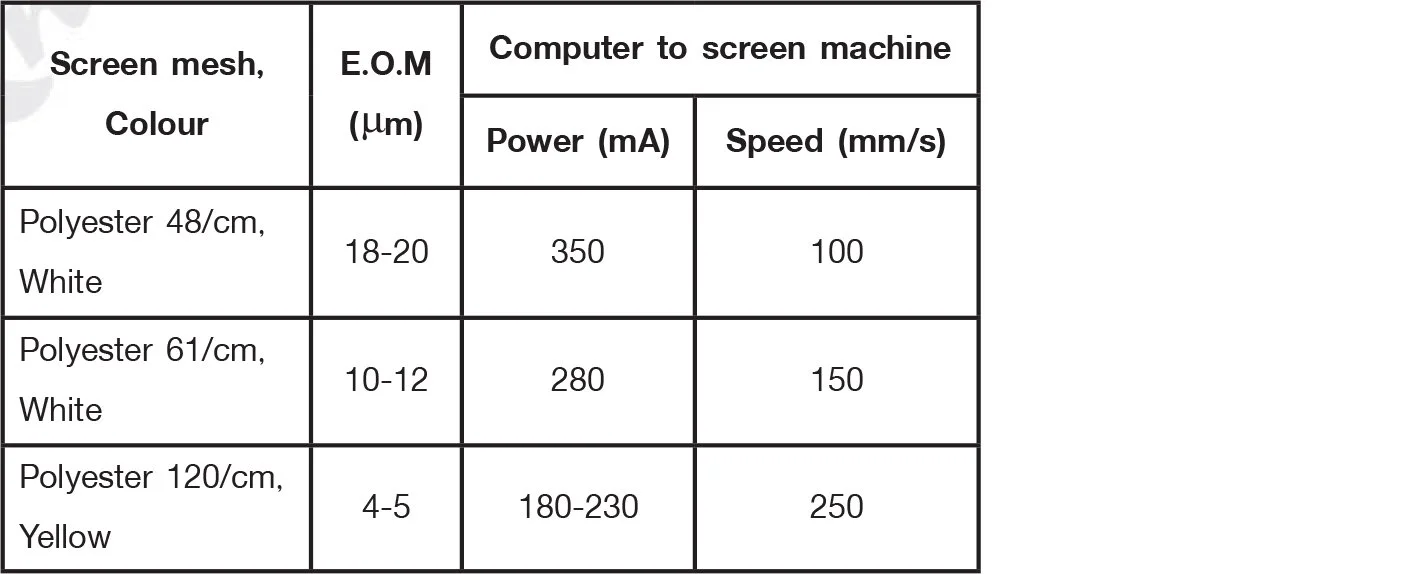

Computer to screen machine

* The above is for guideline purposes only.Please use a grayscale exposure calculator to identify optimal exposure time.

Place the screen in washout booth and gently spray both sides, increase the spray pressure slightly. Continue developing until or parts of the image appear clean and sharp.

Developing

Check for pinholes or blemishes. Spot out with a suitable filler use Screen Filler (22997)

Spotting

  • Use Screenstrip Powder (SST002), Screenstrip Liquid (SST004) or Screenstrip Paste (SST007).

  • Apply the solution to both sides of the screen with a soft brush. Rub into the entire stencil area.

  • Leave the screen for 2-3 minutes, but do not allow the product to dry.

  • Wash with mains pressure water. Use a high-pressure water gun if required.

Reclaiming the Screen

25 Kg, 5 Kg and 1 Kg

Standard Packing

  • Storage temperature should not be over 25 ํC. It should be stored in a dry location with good ventilation and away from heat
    or ignition sources.

  • When stored under these conditions, It is expected to have a shelf-life of 12 months. from the date of manufacture.

  • Close the bottle tightly after every use.

  • This product is not stable when exposed to freezing temperatures and will not be shipped during such conditions.

Storage & Shipping

  • Is free from any toxic, carcinogenic, mutagenic and reprotoxic chemicals.

  • Does not have a flashpoint and is, therefore, exempt from the Highly Flammable Liquid Regulations.

  • Should be stored away from children.

  • Comprehensive information on the Safety and Handling of Polyzol Plus Tex in Safety Data Sheet

Safety and Handling

FT-TX2 is made by Chaiyaboon Brothers Group Co., Ltd. with ISO 9001/ISO 14001
Certified by TUV NORD (Thailand) Ltd.

Certified Standards

For further information or other relevant data, please do not hesitate to contact us.
Chaiyaboon Brothers Group Co., Ltd. has a team of well-trained personnel who are ready to give help and
advise regarding product information and application.

Technical Service and Information
