UV ECO FLEXO

  • Suitable for UV and LED curing, with low odor before and after curing.

  • Designed for all kinds of substrates (Paper, PE, PVC, PP, PET etc)

  • High gloss, excellent transitivity.

  • Good stability on printing machines.

  • Fast curing.

  • Non-volatile components 100%

  • Viscosity: 500-900 mPas (25 ํC)

Properties

  • Cannot be used on packages with direct contact with food and medicines.

  • Not contain raw materials listed in CEPE/EU PIA exclusion list.

  • Abide by CC (coating care) and GMP (good manufacture practice).

  • According with EN 71-3, EC directive 88/378/EEC, and CONEG.

  • Not contain Benzophenone, 907, and ITX.

  • Not add and use PAHS, MOSH, and MOAH.

  • No harm to the body has been considered in the product design but the adhesion of ink on skin or clothing for a long time is likely to cause inflammation or allergic reactions. Therefore, please use protective tools in operation, and wash hands after operation. If ink enters eyes by mistakes, please immediately rinse with plenty of clean water for at least 15 minutes and go to hospital for treatment. When using ink, please pay attention to smoke and fire, ventilate the workshop, and avoid ultraviolet light and direct sunlight.

  • Comprehensive information on the Safety and Handling of UV ECO Flexo in Safety Data Sheet, available on request.

Safety

  • UV Eco Flexo have a one-year(12-month) shelf-life guarantee. This guarantee covers 12 months from the production date, which is mentioned on the label. After the expiry date, those with technical indicators in the qualified range can still be used.

  • Suggested storage temperature: 10 ํC-30 ํC

  • Avoid direct sunlight or direct heating

  • Avoid mixing with other brands of UV, water-based, and conventional inkWaste should be

Shelf life and Storage

Through testing and using, the UV Eco Flexo has beenfound to be suitable for many kinds of materials, including:

  • Coated paper

  • Uncoated paper

  • Polyethylene (PE) & Top coated PE

  • Polypropylene(PP) & Top coated PP

  • PET&PET-G

  • PVC & BOPP

For synthetic materials, the Dyne value on the surface needs to reach 38- 42 dyne/cm for fear that too low surface tension should affect the adhesion of ink. Meanwhile, we suggest switching on the online corona device to obtain a better adhesive effect when printing synthetic materials. Considering the difference of different materials in surface treatment and the instability of batches of materials, we suggest making the adhesion test before using new materials.

Substrates

UV Silicone Surface Additive

It can be added to the ink in the proportion of 0.2% to 2% to reduce the surface tension of ink after curing, which can effectively improve the smooth performance of ink surface and the rub resistance of ink. After curing, the surface tension of ink will be reduced, which will affect the re-coating performance of upper ink, and cause the shrink of shrinkage cavity. Meanwhile, on the ink after the addition of smooth agent, post-processes such as cold stamping, coating, digital numbering, and laminating will be affected to a certain extent.

UV Flexo Reducer

The addition of every 1%-5% to the ink can reduce ink tack. If the proportion of addition is more than 5%, extra drying agent is needed to ensure the dry ability.

UV Dryer

If the lamp power is not enough or the curing speed needs to be improved, UV DRYER can be added to the ink in the proportion of 1%-5%. It should be careful to add it to light color or white ink, because the excessive addition

Additives

  • Process colors

  • Mixing colors

  • Lightfast colors

  • Pantone Basic colors

  • Spot colors under request

Available Colors

  • 5 kg plastic drum

  • 20 kg plastic drum

Packaging

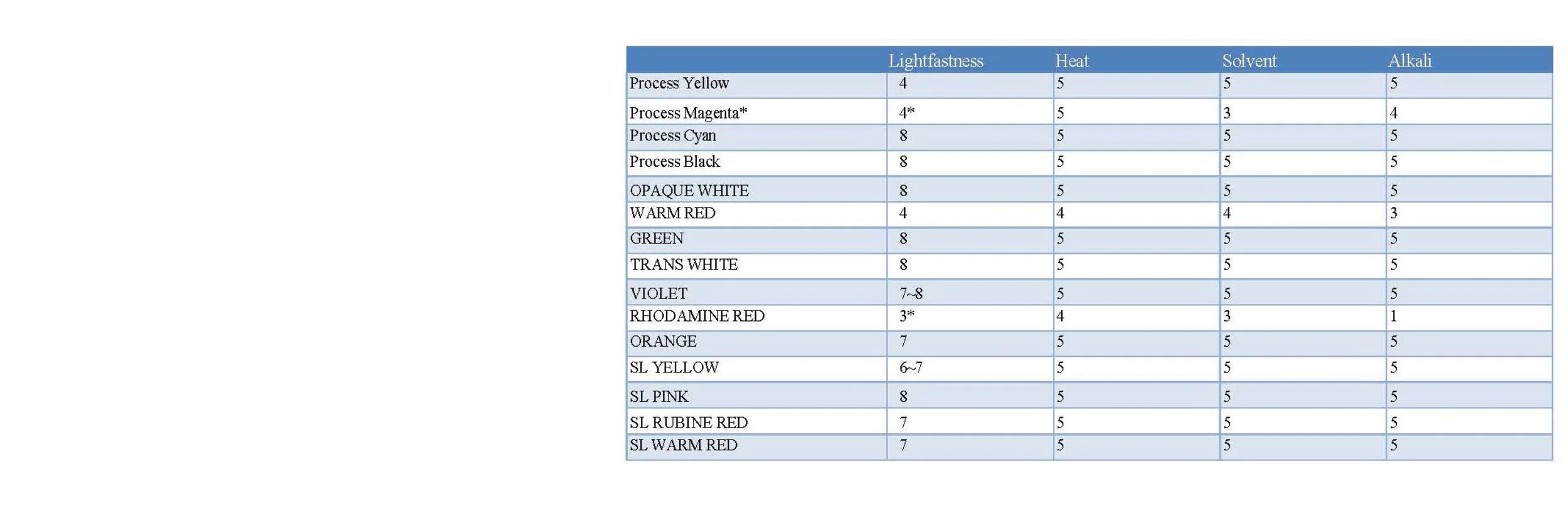

UV ECO Flexo usually can obtain excellent durability immediatelyafter curing in the right way, but printed products usuallycan obtain the optimal adhesion, chemical resistance, and rub resistance 24 hours after the printing.In Each instance the following test methods have been used:

  • Lightfastness: ISO 2835:1974

  • Solvent/Alkaline Resistance: ISO: 2836:2004

Fastness & Resistance

  • This information is based on our present state of knowledge and is intended to provide general notes on our products and their used.

  • The quality of our products is guaranteed under our general conditions of sale.

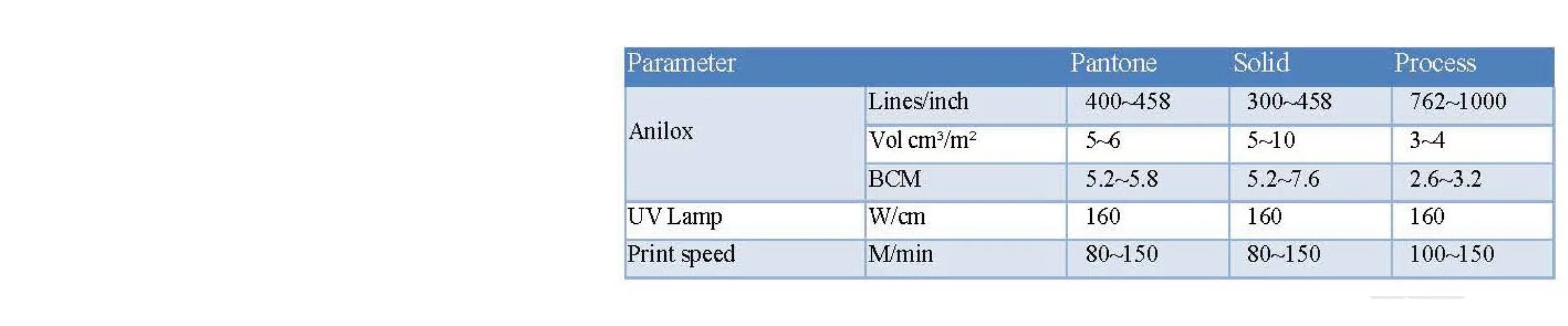

Printing Conditions
